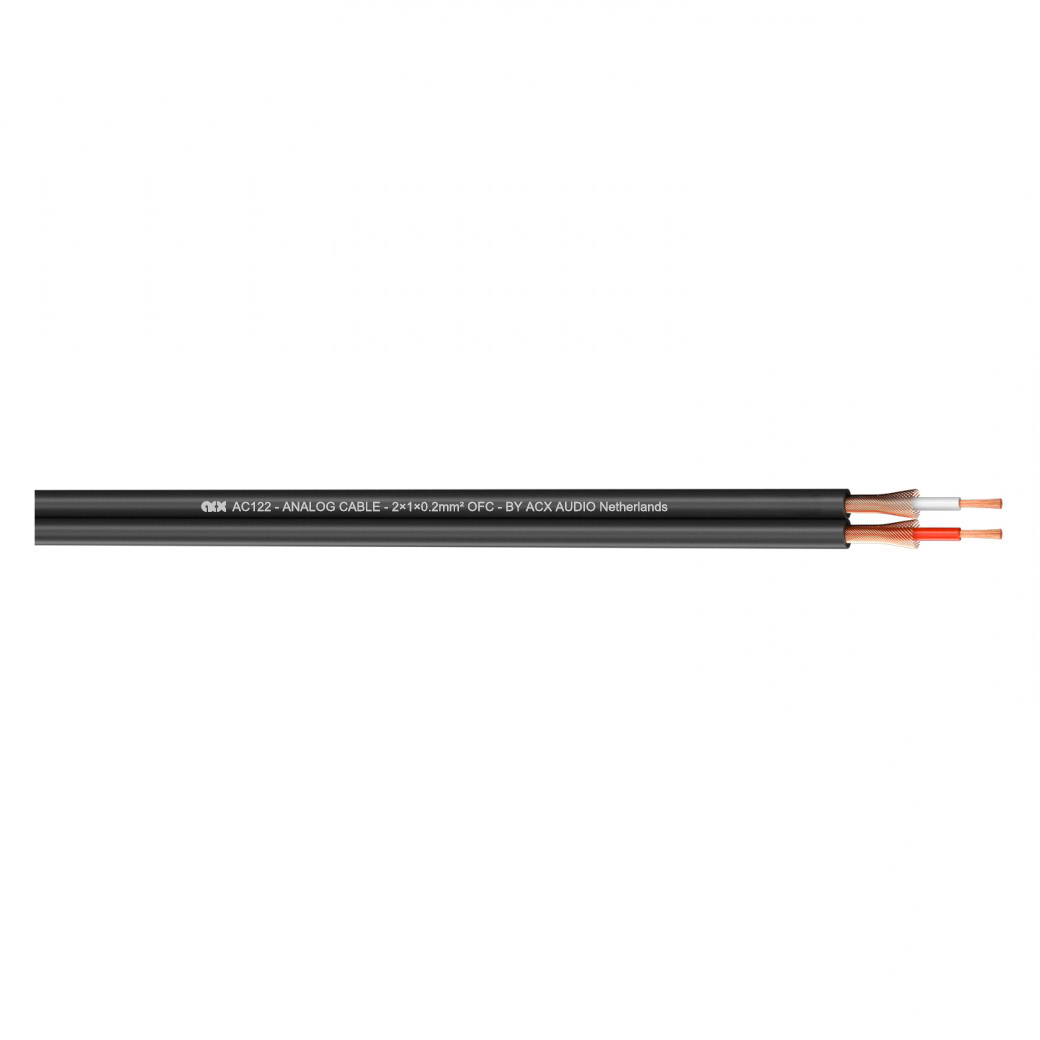

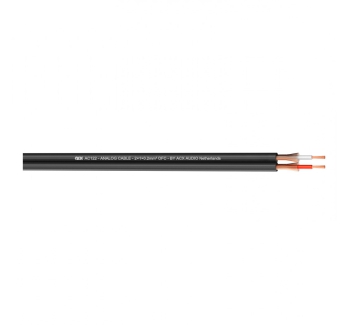

AC122
Analog Cable AC122
PVC 4*8 mm - 2x1x0.22 mm²
Part. No.: BC0009
| General | |
| Part number : | BC0009 |
| Cable model: | AC122 |
| Cable type; | Analog Cable |
| Properties: | Analog |
| Conductor material: | OFC |
| Application area: | AV/audio |
| Application type: | Indoor |
| Application of voltage: | Low voltage |
| Standards: | CE/Rosh |

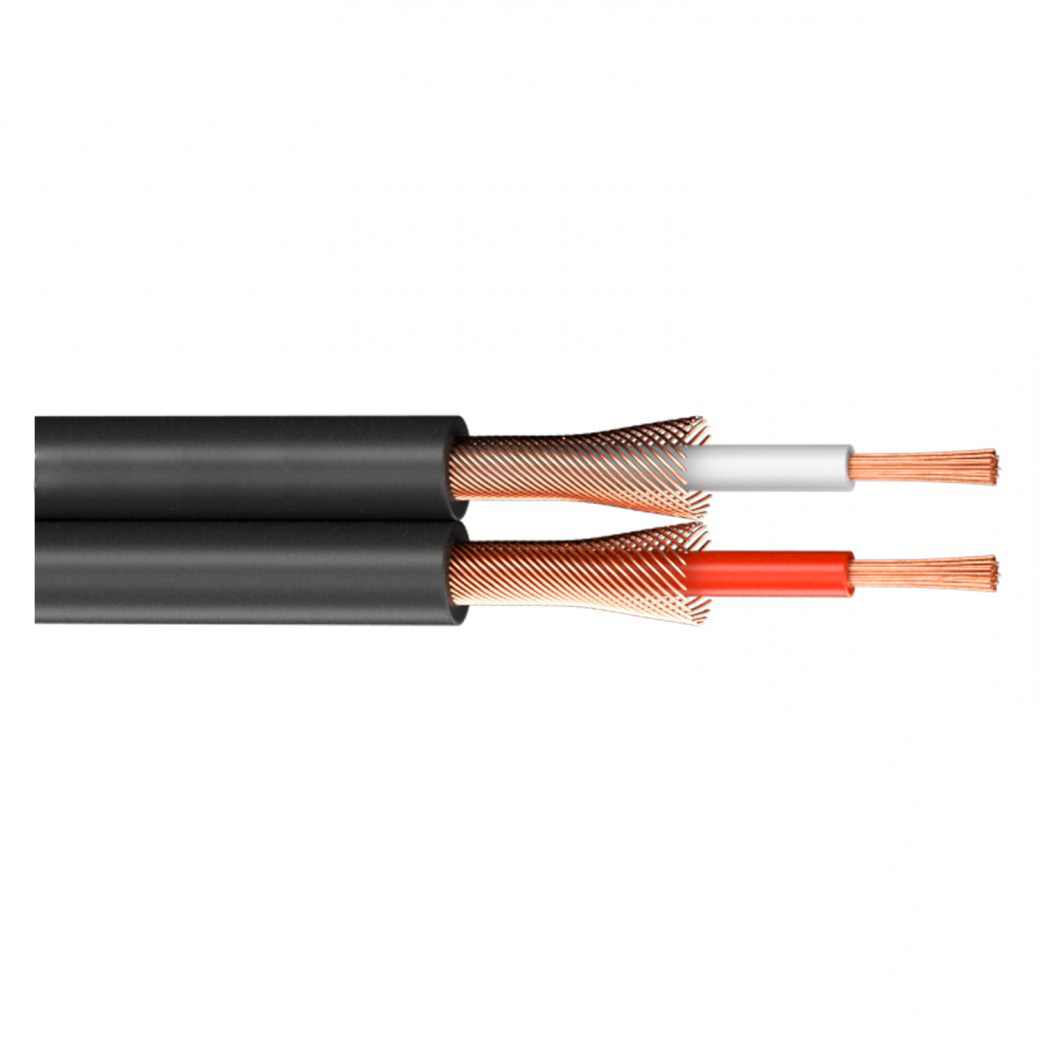

| Construction | |
| Jacket material : | PVC |
| Colour | black |
| Jacket shape; | round |
| Jacket diameter [mm]: | 4*8 |
| Conductor ; | 2×1×0.22 mm² |
| AWG: | 24 |
| Copper construction mm: | 7 × Ø 0.20 |
| Insulation material : | FEP |
| Conductor shielding: | Copper spiral |
| Weight kg/roll: | 10.4kg |
| Packing m/roll : | 200 |
| Min.bending radius: | 20 |
| Min.temperature [C]: | -20 |
| Max.temperature [C]: | 70 |
| Electrical Data | |
| Capacitance pF/m | 95 |
| Conductor resistance Ω/km | <85 |
| Max.operating voltage V | 300 |
