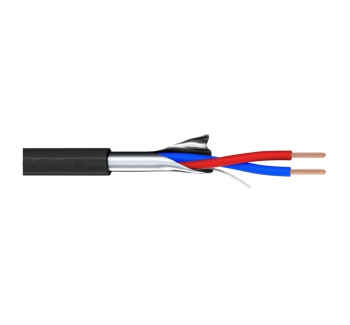

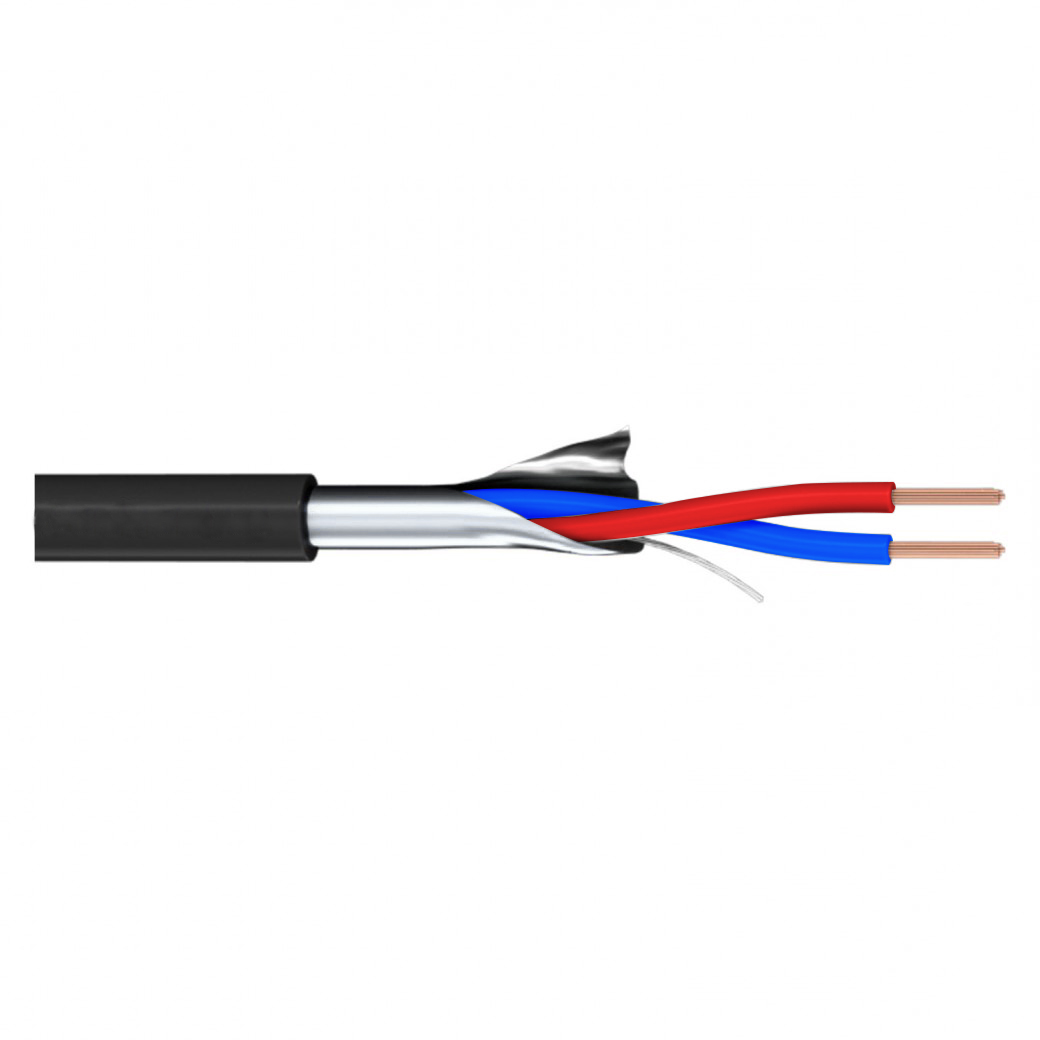

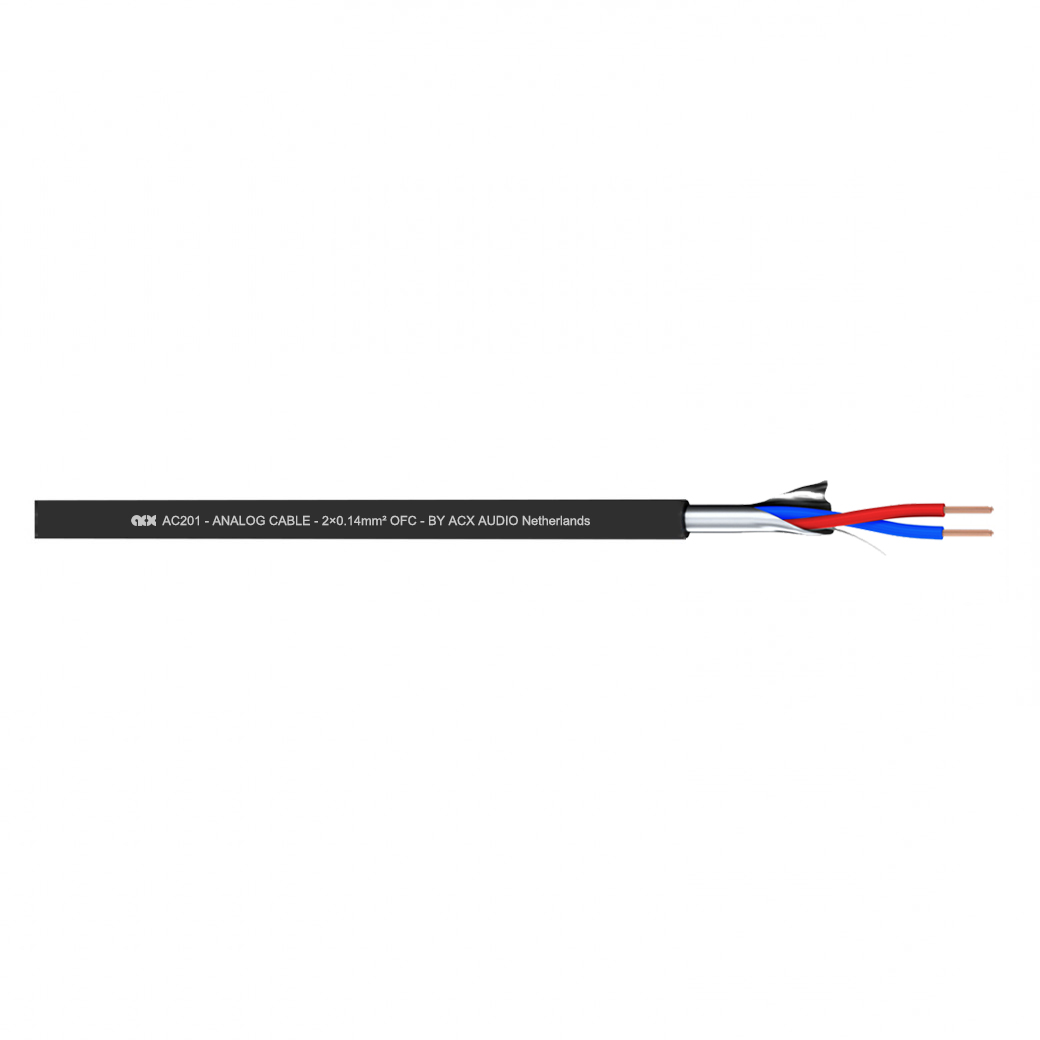

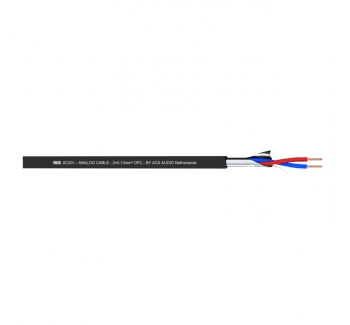

AC201
Analog Cable AC201
PVC Ø3mm - 2x0.14 mm²
Part. No.: BC0011
| General | |
| Part number: | BC0011 |
| Cable model: | AC201 |
| Cable type; | Analog Cable |
| Properties: | Analog |
| Conductor material: | OFC |
| Application area: | AV/audio |
| Application type: | Indoor |
| Application of voltage: | Low voltage |
| Standards: | CE/Rosh |
| Construction | |
| Jacket material : | PVC |
| Colour | black |
| Jacket shape; | round |
| Jacket diameter [mm]: | 3 |
| Conductor ; | 2×0.14 mm² |
| AWG: | 26 |
| Copper construction mm: | 18 × Ø 0.10 |
| Insulation material : | FEP |
| Conductor shielding: | PT AL foil + Tined filler strand |
| Weight kg/roll： | 3.4kg |
| Packing m/roll ： | 200 m |
| Min.bending radius | 15 |
| Min.temperature [C]: | -20 |
| Max.temperature [C]: | 70 |
| Electrical Data | |
| Capacitance pF/m | 68 |
| Conductor resistance Ω/km | <125 |
| Max.operating voltage V | 300 |
