AC202

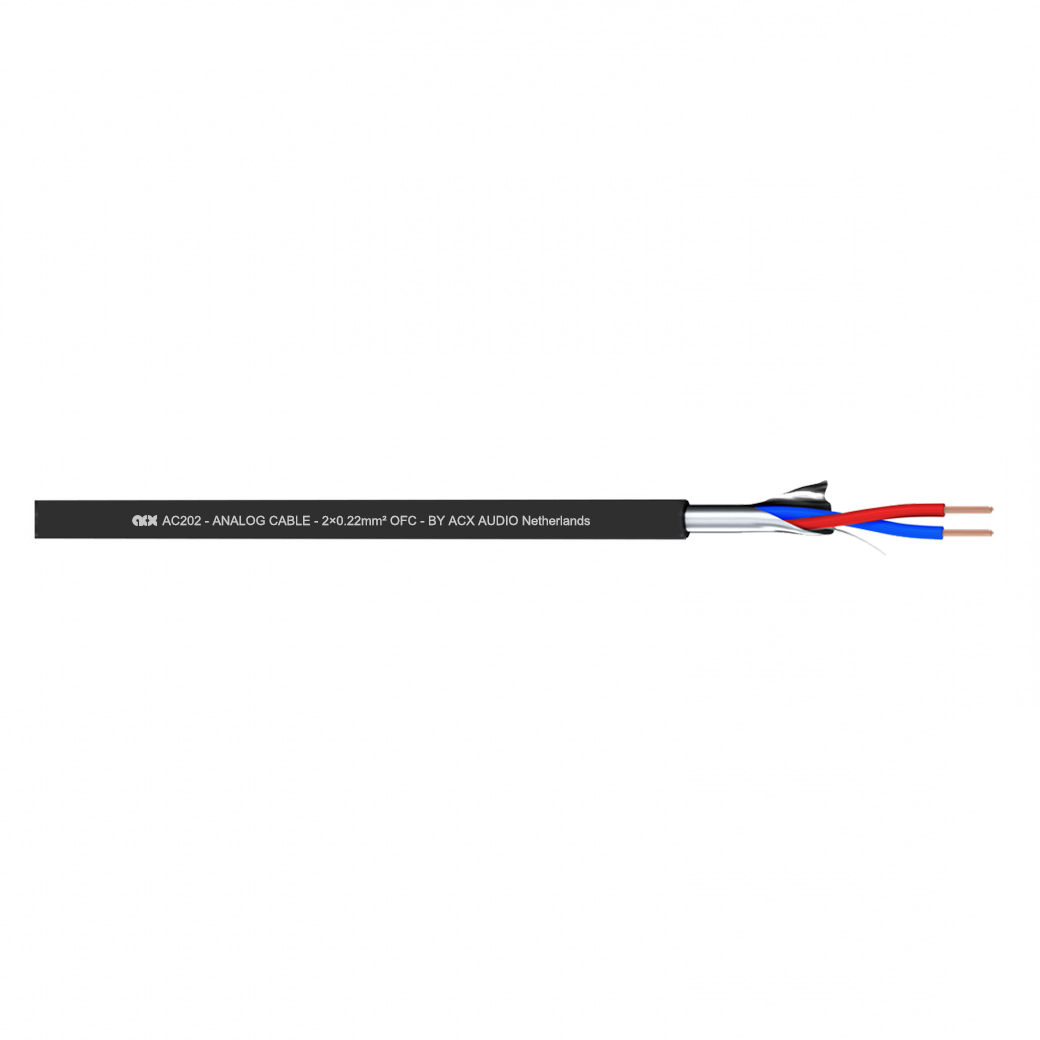

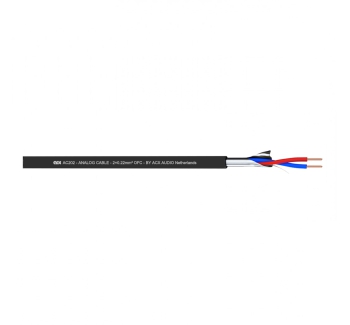

Analog Cable AC202
PVC Ø3.5mm - 2x0.22 mm²
Part. No.: BC0012
| General | |
| Part number : | BC0012 |
| Cable model: | AC202 |
| Cable type; | Analog Cable |
| Properties: | Analog |
| Conductor material: | OFC |
| Application area: | AV/audio |
| Application type: | Indoor |
| Application of voltage: | Low voltage |
| Standards: | CE/Rosh |

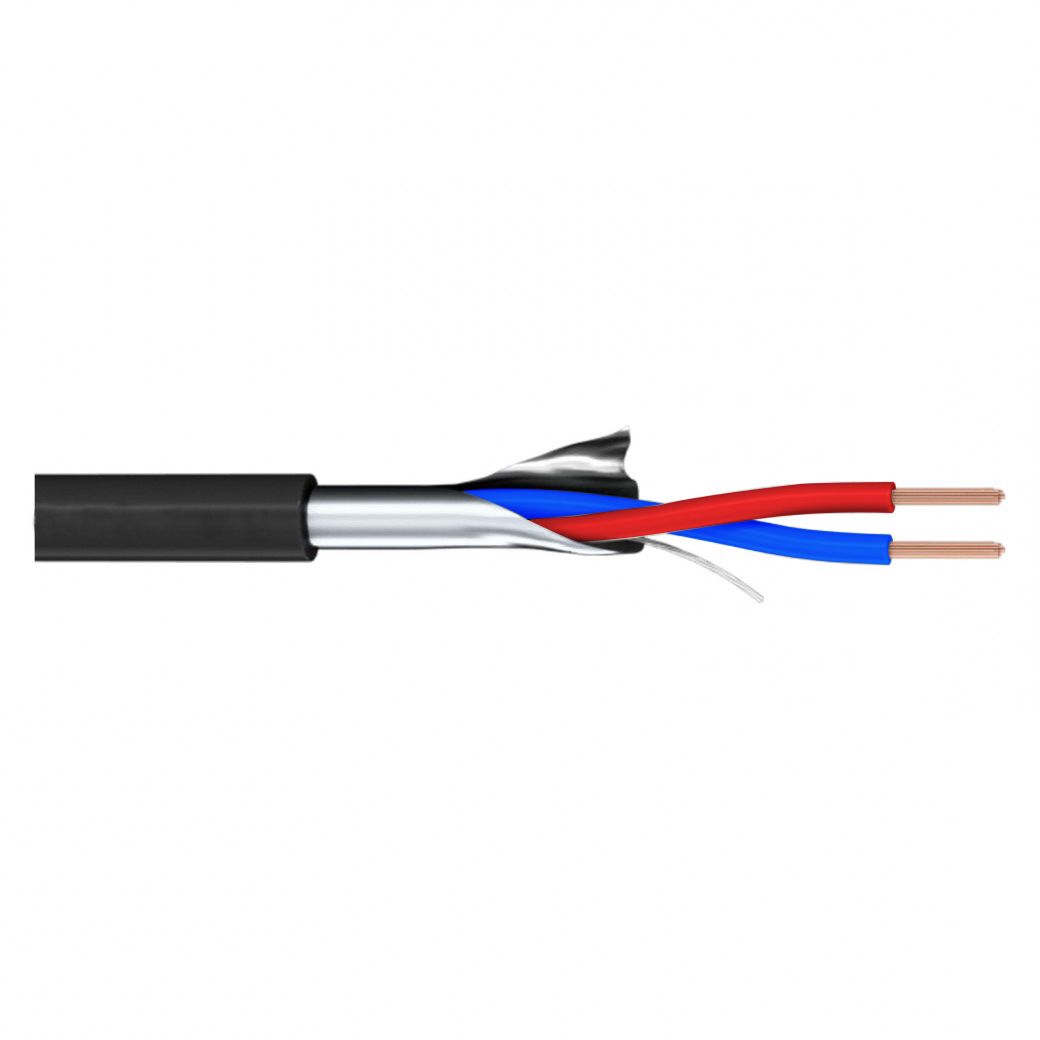

| Construction | |
| Jacket material : | PVC |
| Colour | black |
| Jacket shape; | round |
| Jacket diameter [mm]: | 3.5 |
| Conductor ; | 2×0.22 mm² |
| AWG: | 24 |
| Copper construction mm: | 7 × Ø 0.20 |
| Insulation material : | FEP |
| Conductor shielding: | PT AL foil + Tined filler strand |
| Weight kg/roll： | 4.5kg |
| Packing m/roll ： | 200 m |
| Min.bending radius | 18 |
| Min.temperature [C]: | -20 |
| Max.temperature [C]: | 70 |
| Electrical Data | |
| Capacitance pF/m | 75 |
| Conductor resistance Ω/km | <85 |
| Max.operating voltage V | 300 |
