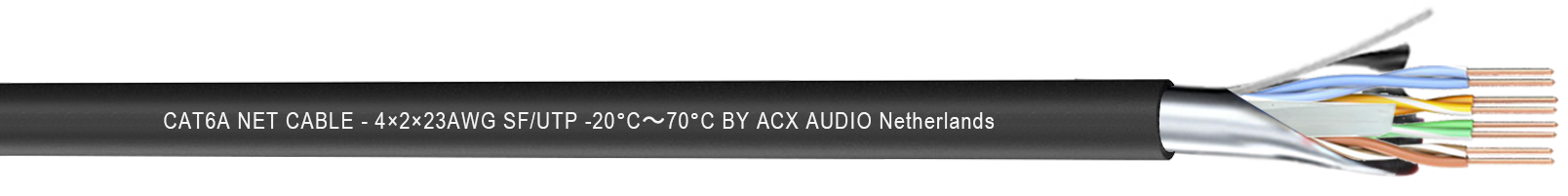

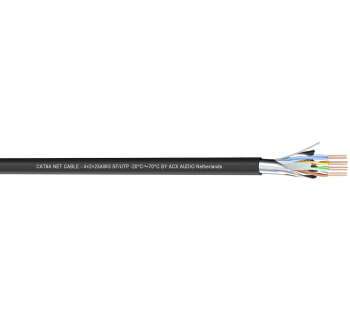

CAT6A
Installationl LAN Cable CAT6A
PVC Ø6.5 mm - 4x2xAWG23
Part. No.: BC0027
| General | |
| Part number : | BC0027 |
| Cable model : | CAT6A |
| Cable type : | Cat6A LAN Cable |
| Properties : | Digital |
| Conductor material : | OFC |
| Application area : | Stage / live |
| Application type : | indoor |
| Application of voltage : | Low voltage |
| Standards: | IEC60754-1 |
| Construction | |
| Jacket material : | PVC |
| Colour : | black |
| Jacket shape : | round |
| Jacket diameter [mm] : | 6.5 |
| Conductor : | 4 × 2 × 0.24mm² |
| AWG : | 23AWG |
| Copper construction mm : | 1 × Ø 0.56 |
| Shielding type : | FTP |
| Weight kg/roll： | 14kg |
| Packing m/roll ： | 305 |
| Min. bending radius | 39 |
| Min. temperature [°C] : | -20 |
| Max. temperature [°C] : | 70 |
