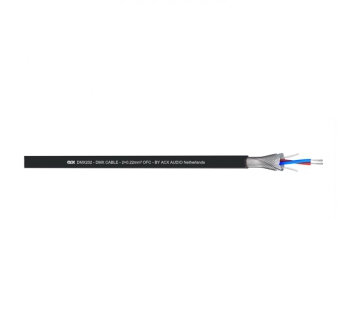

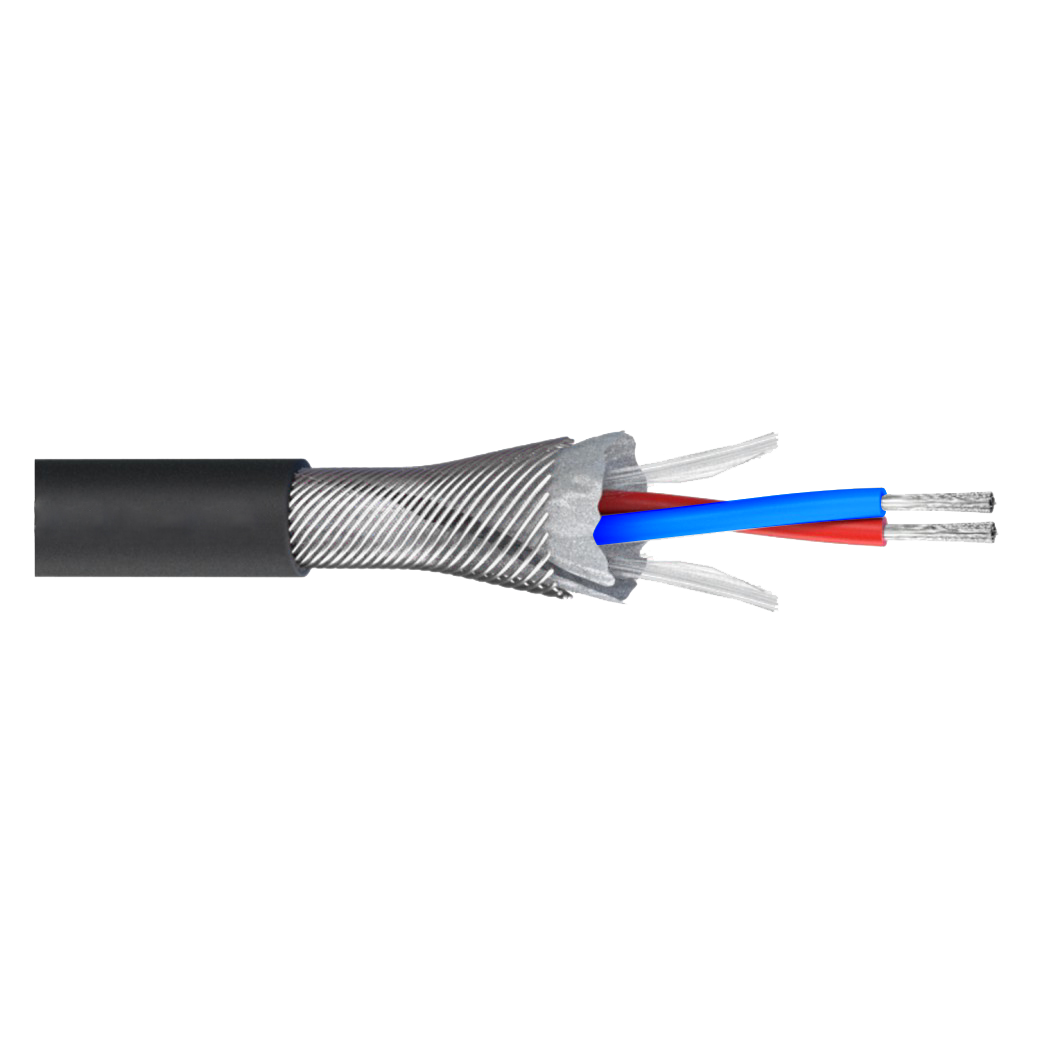

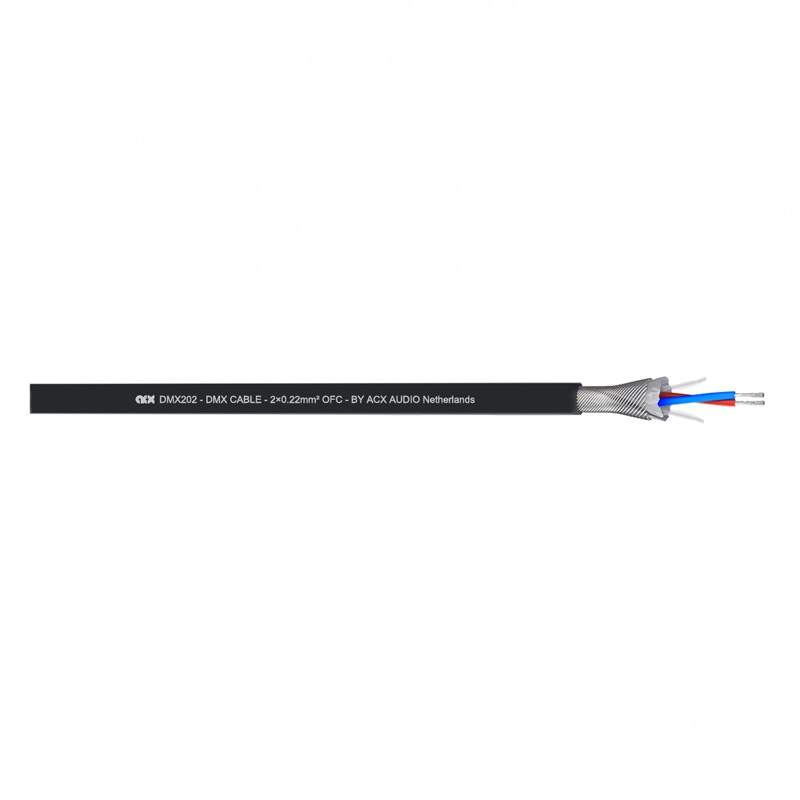

DMX202
DMX Cable
Ø6 mm - 2x0.22 mm² PVC
Part. No.: BC0016
| General | |
| Part number : | BC0016 |
| Cable model: | DMX202 |
| Cable type; | DMX Cable |
| Properties: | Digital |
| Conductor material: | Tinned Copper |
| Application area: | Stage /live |
| Application type: | Mobile outdoor /indoor |
| Application of voltage: | Low voltage |
| Standards: | CE/Rosh |
| Construction | |
| Jacket material : | PVC |
| Colour: | black |
| Jacket shape; | round |
| Jacket diameter [mm]: | 6 |
| Conductor ; | 2×0.22 mm² |
| AWG: | 24 |
| Copper construction mm: | 7 × Ø 0.20 TC |
| Insulation material : | PE |
| Conductor shielding: | Tined copper braided |
| Weight kg/roll： | 8.4kg |
| Packing m/roll ： | 200 m |
| Min.bending radius | 30 |
| Min.temperature [C]: | -20 |
| Max.temperature [C]: | 70 |
| Electrical Data | |
| Capacitance pF/m | 110 |
| Conductor resistance Ω/km | <80 |
| Max.operating voltage V | 300 |
