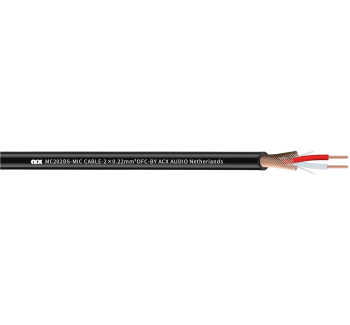

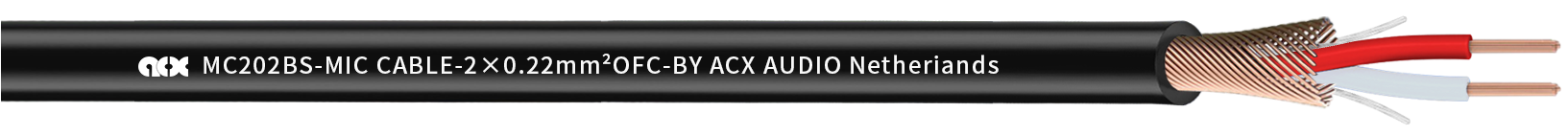

MC202BS
Microphone Cable
PVC Ø5.8 mm - 2x0.2 mm²
Part. No.: BC0025
| General | |
| Part number | BC0025 |
| Cable model | MC202BS |
| Cable type | Microphone Cable |
| Properties | Analog |
| Conductor material | OFC |
| Application area | Stage /live |
| Application type | Mobile outdoor/indoor |
| Application of voltage | Low voltage |
| Standards | CE/Rosh |
| Construction | |
| Jacket material | PVC |
| Colour | Black |
| Jacket shape | Round |
| Jacket diameter [mm] | 5.8 |
| Conductor | 2×0.2 mm² |
| AWG | 24 |
| Copper construction mm | 2 × 0.2 mm² |
| Insulation material | FEP |
| Conductor shielding | Copper spiral |
| Weight kg/roll | 7.8kg |
| Packing m/roll | 200 m |
| Min.bending radius | 29 |
| Min.temperature [°C] | -20 |
| Max.temperature [C] | 70 |
| Electrical Data | |
| Capacitance pF/m | 72 |
| Conductor resistance Q/km | <85 |
| Max.operating voltage V | 300 |
