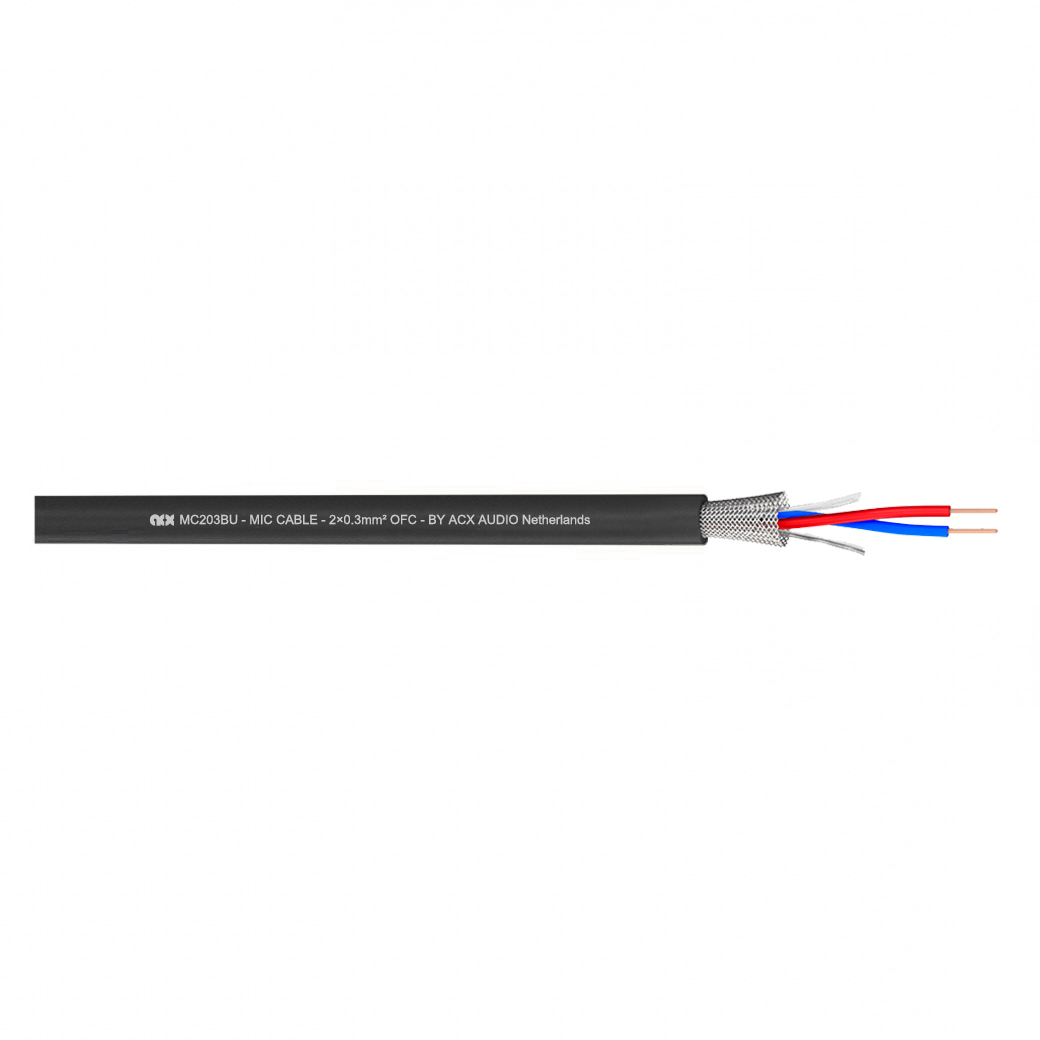

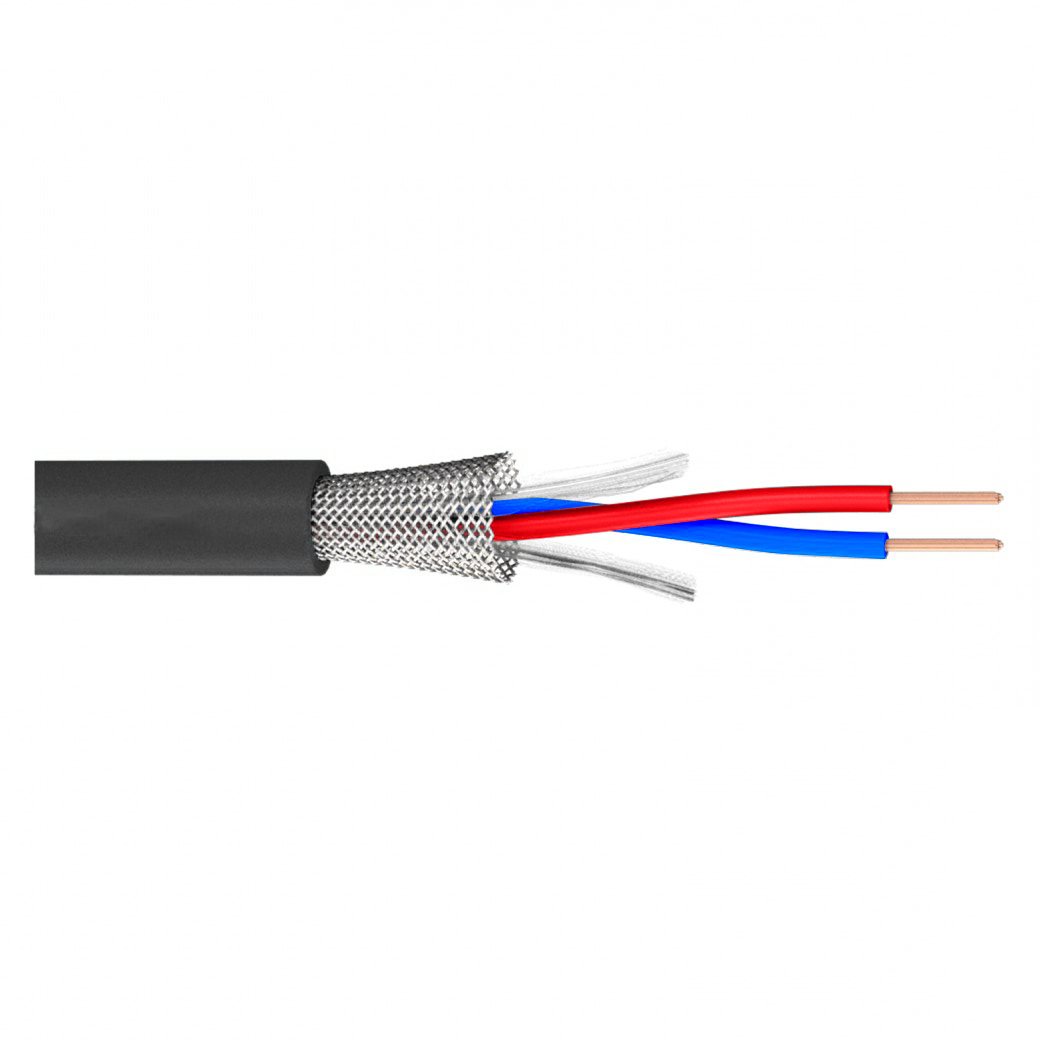

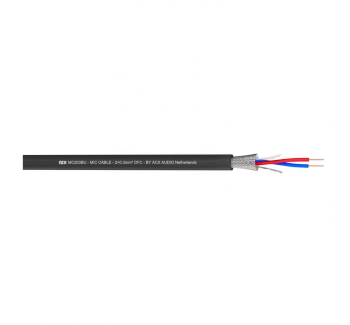

MC203BU
Microphone Cable
PUR Ø6 mm - 2x0.3 mm²
Part. No.: BC0004
| General | |
| Part number | BC0004 |
| Cable mode | MC203BU |
| Cable type | Microphone Cable |
| Properties | Analog |
| Conductor material | OFC |
| Application area | Stage /live |
| Application type | Mobile outdoor/indoor |
| Application of voltage | Low voltage |
| Standards | CE/Rosh |
| Construction | |
| Jacket material | PUR |
| Colour | black |
| Jacket shape | round |
| Jacket diameter [mm] | 6 |
| Conductor | 2x0.3 mm² |
| AWG | 22 |
| Copper construction mm | 38 × Ø 0.10 |
| Insulation material | FEP |
| Conductor shielding | Tined copper braided |
| Weight kg/roll | 9kg |
| Packing m/roll | 200m |
| Min.bending radius | 30 |
| Min.temperature [C] | -40 |
| Max.temperature [C] | 70 |
| Electrical Data | |
| Capacitance pF/m | 50 |
| Conductor resistance Q/km | <64 |
| Max.operating voltage V | 300 |
