MC205BU

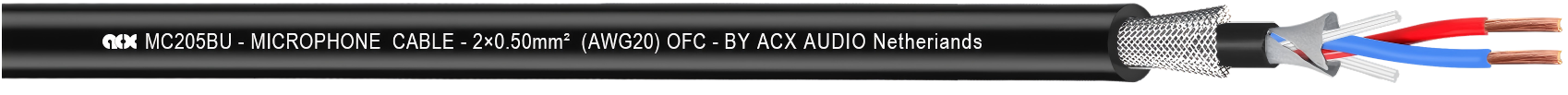

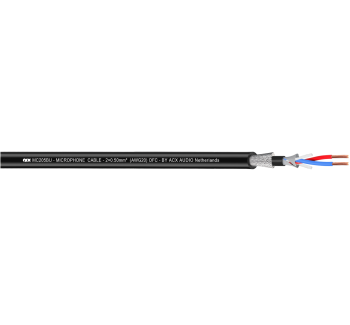

Microphone Cable MC205BU
PUR Ø6.5 mm - 2x0.50 mm²
Part. No.: BC0026
| General | |
| Part number | BC0026 |
| Cable model | MC205BU |
| Cable type | Microphone Cable |
| Properties | Analog |
| Conductor material | OFC |
| Application area | Stage /live |
| Application type | Mobile outdoor /indoor |
| Application of voltage | Low voltage |
| Standards | CE/Rosh |
| Construction | |
| Jacket material | PUR |
| Colour | Black |
| Jacket shape | Round |
| Jacket diameter [mm] | 6.5 |
| Conductor | 2 × 0.50 mm² |
| AWG | 24 |
| Copper construction mm | 30 × Ø 0.10 |
| Insulation material | PFA |
| Conductor shielding | Tined copper braided |
| Weight kg/roll | 18kg |
| Packing m/roll | 200 m |
| Min.bending radius | 33 |
| Min.temperature [C] | -40 |
| Max.temperature [C] | 70 |
| Electrical Data | |
| Capacitance pF/m | 120 |
| Conductor resistance Q/km | <34 |
| Max.operating voltage V | 300 |
