MC401B

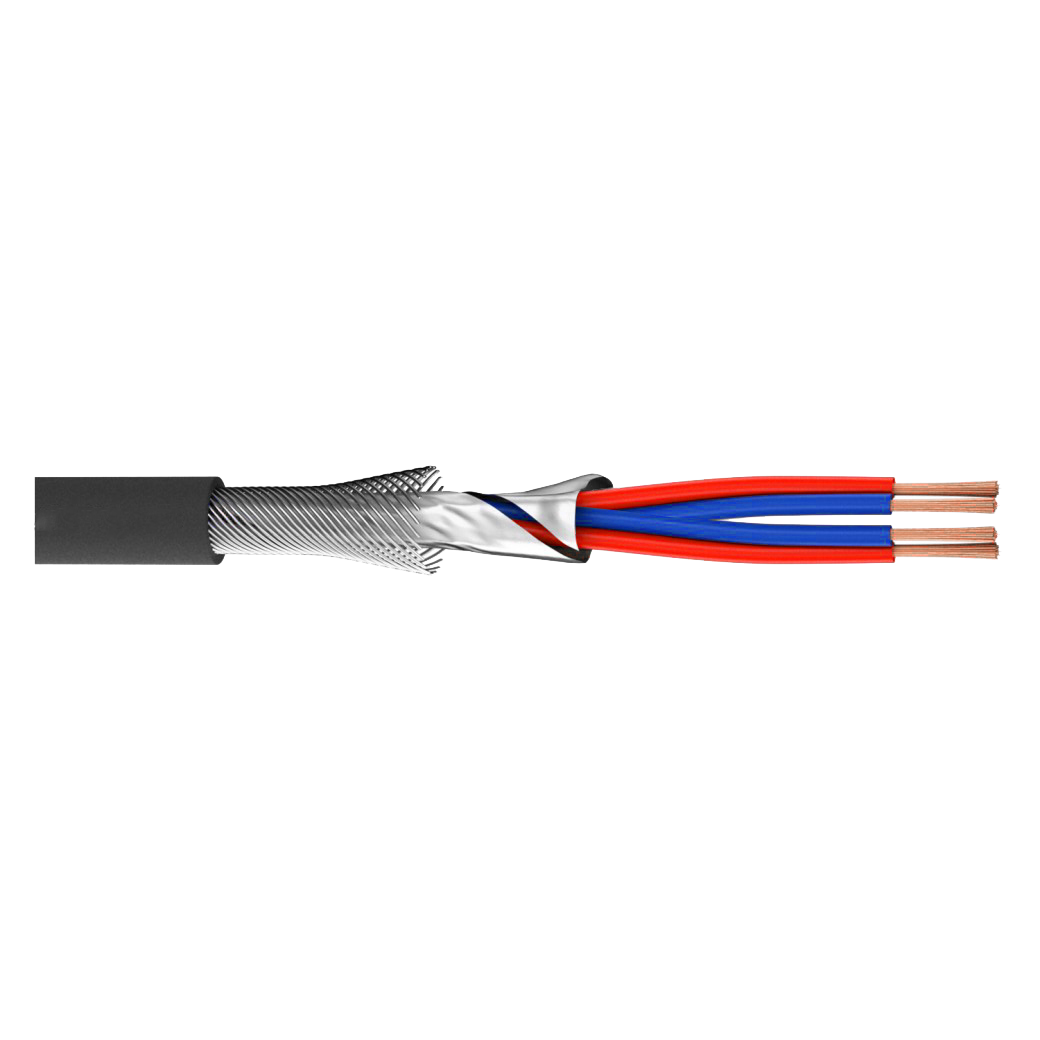

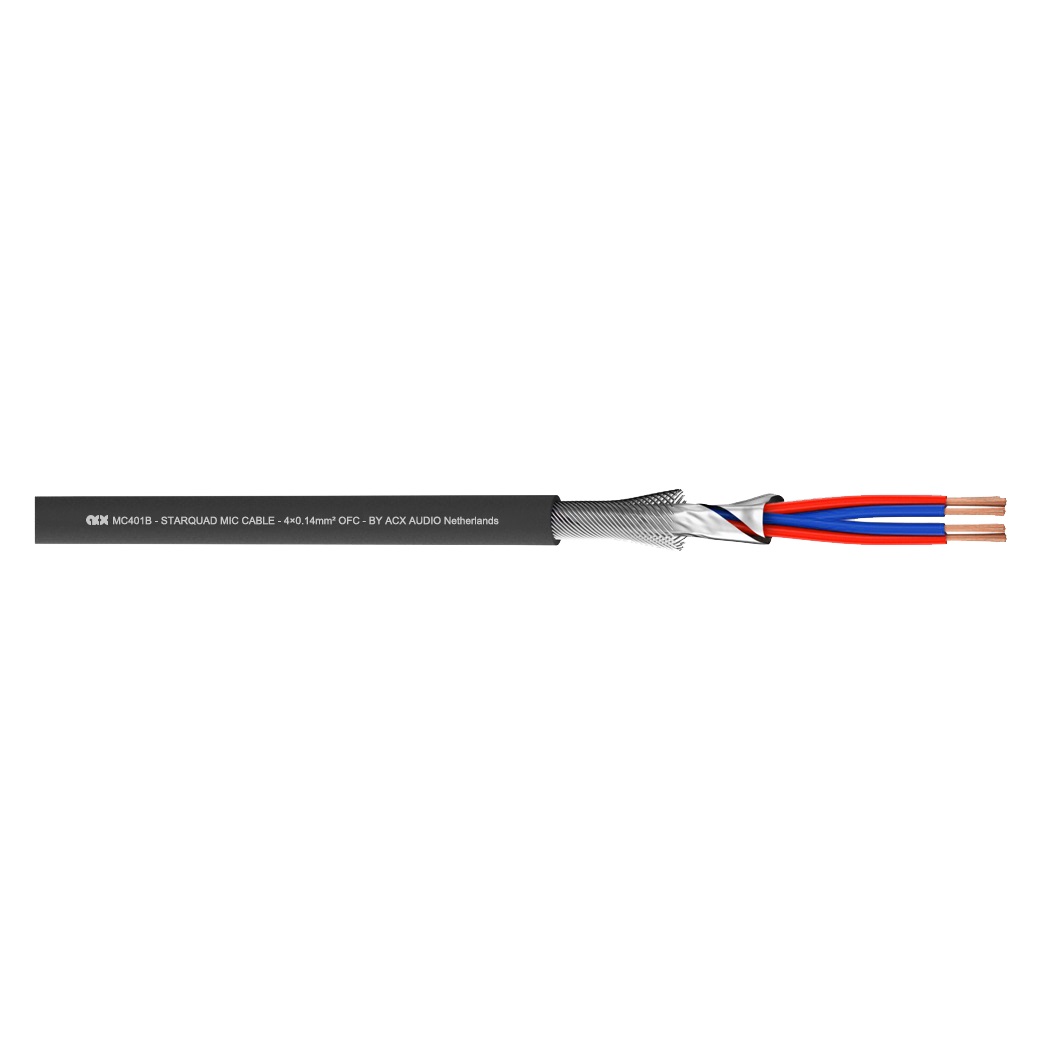

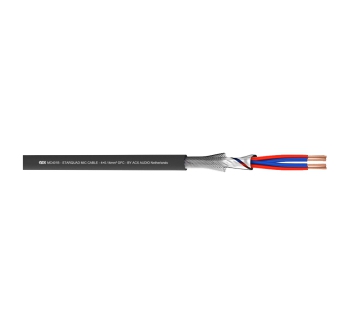

Microphone Cable MC401B
PVC Ø6 mm - 4x0.14 mm²
Part. No.: BC0005
| General | |
| Part number | BC0005 |
| Cable model | MC401B |
| Cable type | Microphone Cable |
| Properties | Analog |
| Conductor material | OFC |
| Application area | Stage /live |
| Application type | Mobile outdoor/indoor |
| Application of voltage | Low voltage |
| Standards | CE/Rosh |
| Construction | |
| Jacket material | S-PVC |
| Colour | Black |
| Jacket shape | Round |
| Jacket diameter [mm] | 6 |
| Conductor | 18×0.10 mm² |
| AWG | 51 |
| Copper construction mm | 18×00.10 |
| Insulation material | FEP |
| Conductor shielding | Tined copper braided |
| Weight kg/roll | 10.2kg |
| Packing m/roll | 200 m |
| Min.bending radius | 30 |
| Min.temperature [°C] | -20 |
| Max.temperature [C] | 70 |
| Electrical Data | |
| Capacitance pF/m | 40 |
| Conductor resistance Q/km | <130 |
| Max.operating voltage V | 300 |
