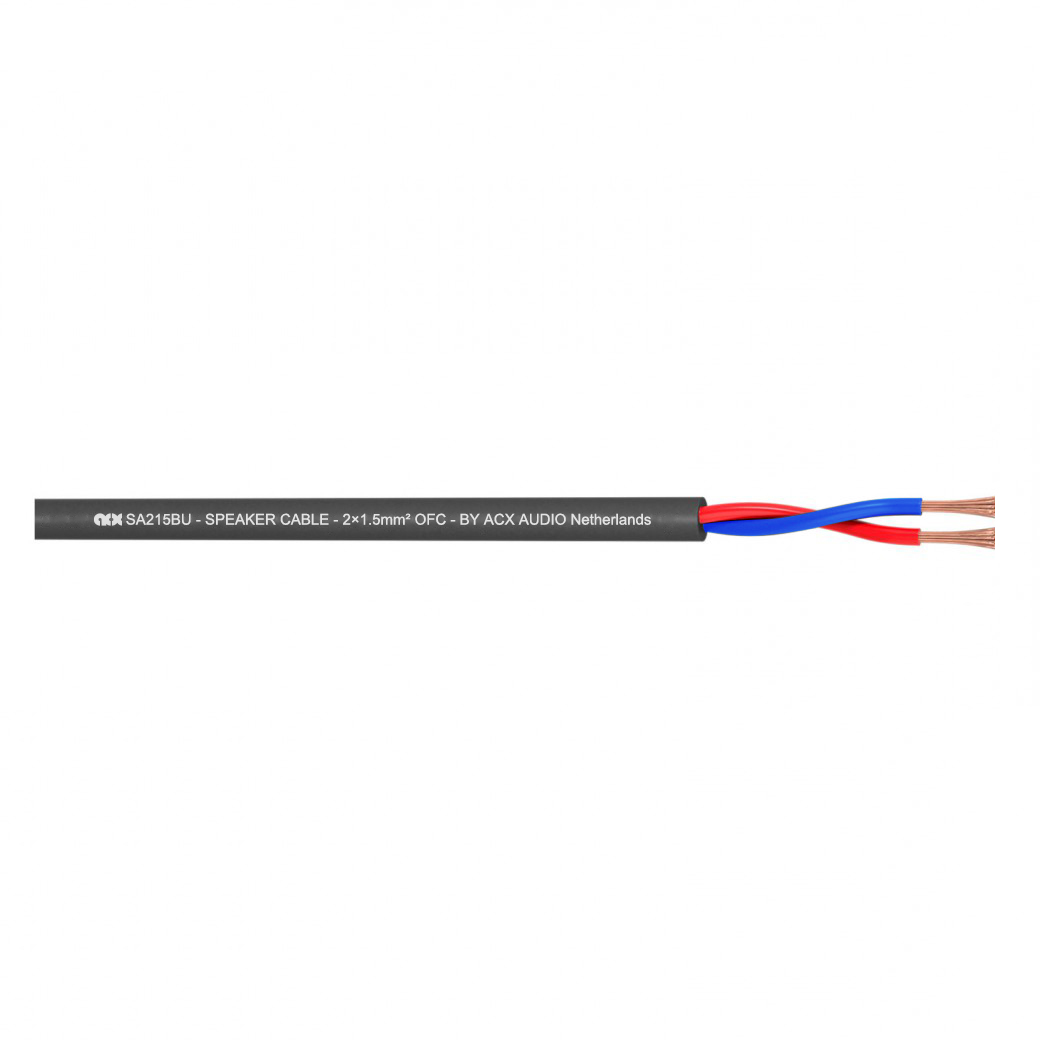

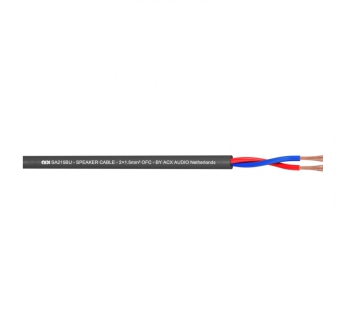

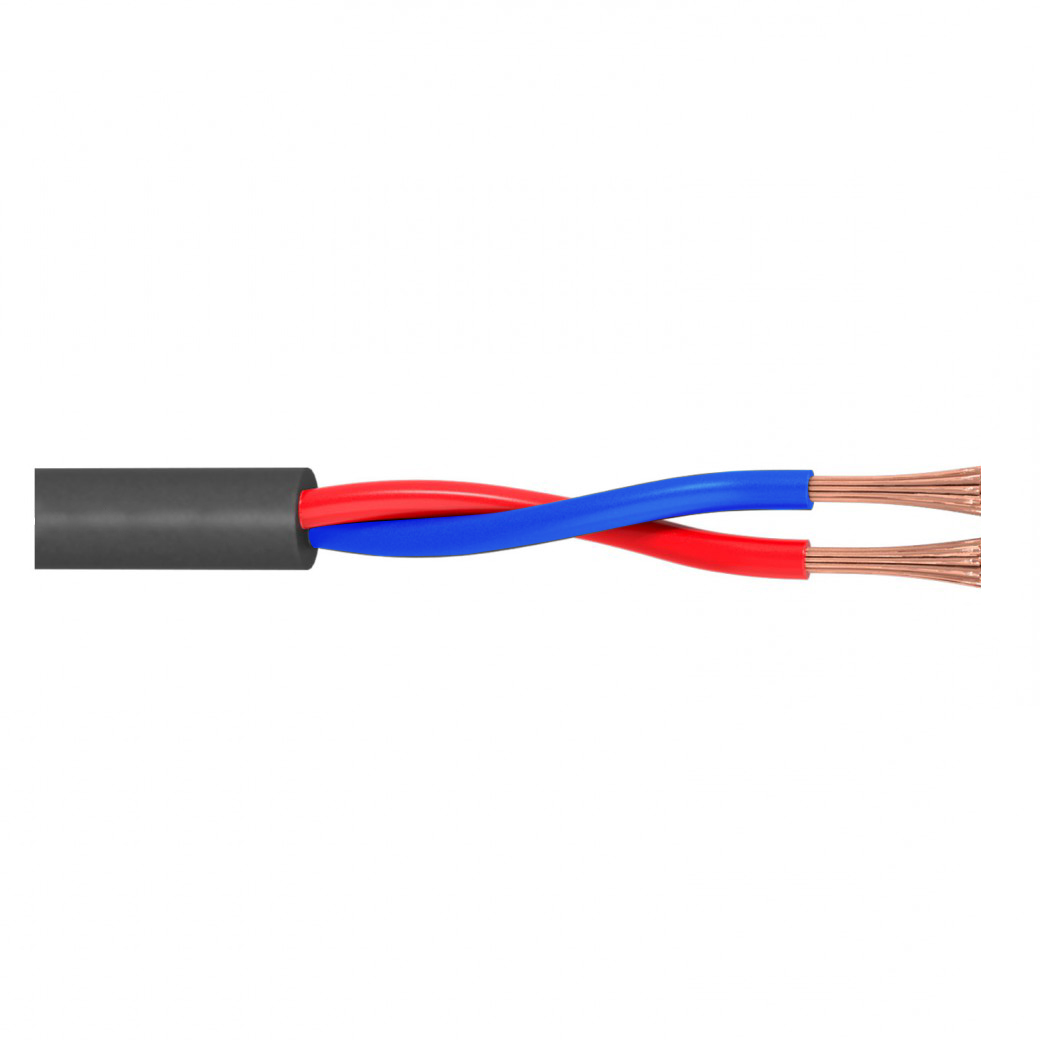

SA215BU
Mobile Speaker Cable
PUR Ø8 mm - 2x1.50 mm²
Part. No.: BC0082
| General | |
| Part number | BC0082 |
| Cable model | SA215BU |
| Cable type | Speaker Cable |
| Properties | Analog |
| Conductor material | OFC |
| Application area | Stage /live |
| Application type | Mobile outdoor /indoor |
| Application of voltage | Low voltage |
| Standards | CE/Rosh |
| Construction | |
| Jacket material | PUR |
| Colour | Black |
| Jacket shape | Round |
| Jacket diameter [mm] | 7.6 |
| Conductor | 2×1.50 mm² |
| AWG | 15 |
| Copper construction mm | 27×00.25 |
| Insulation material | PVC |
| Insulation diameter [mm] | 3.0 |
| Weight g/m | 7.3KG |
| Packing m | 100 m |
| Min.bending radius | 38 |
| Min.temperature [°C] | -40 |
| Max.temperature [C] | 70 |
| Electrical Data | |
| Capacitance pF/m | 105 |
| Conductor resistance Q/km | <13 |
| Max.operating voltage V | 300 |
