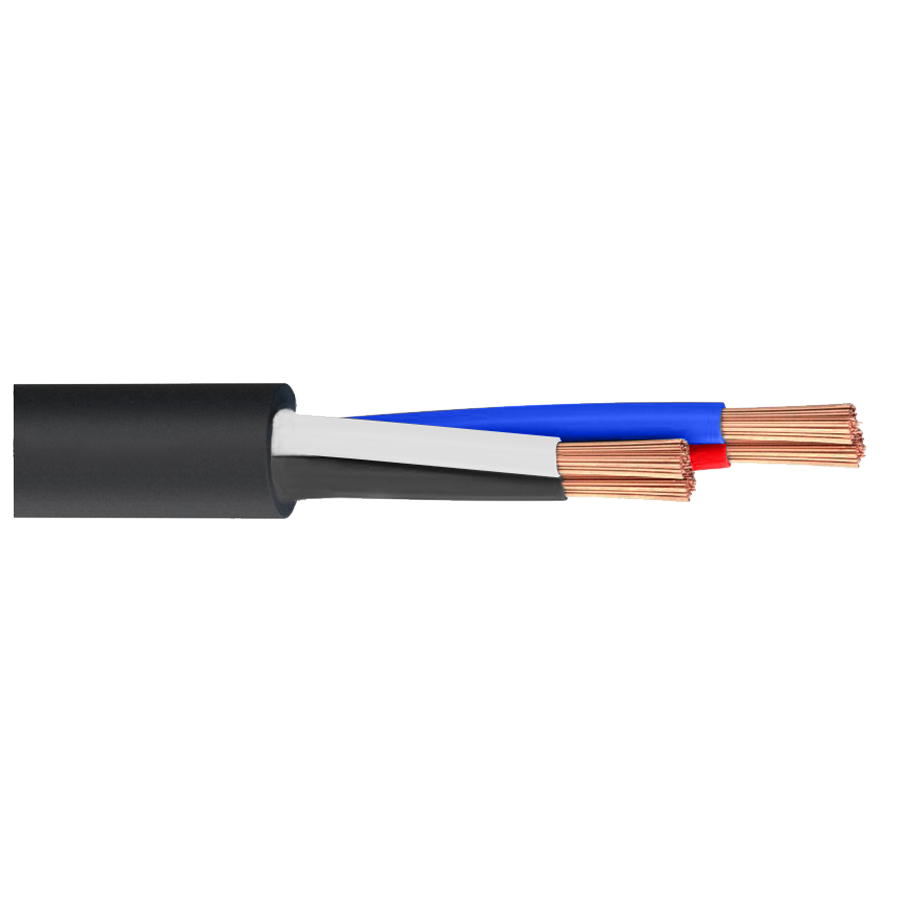

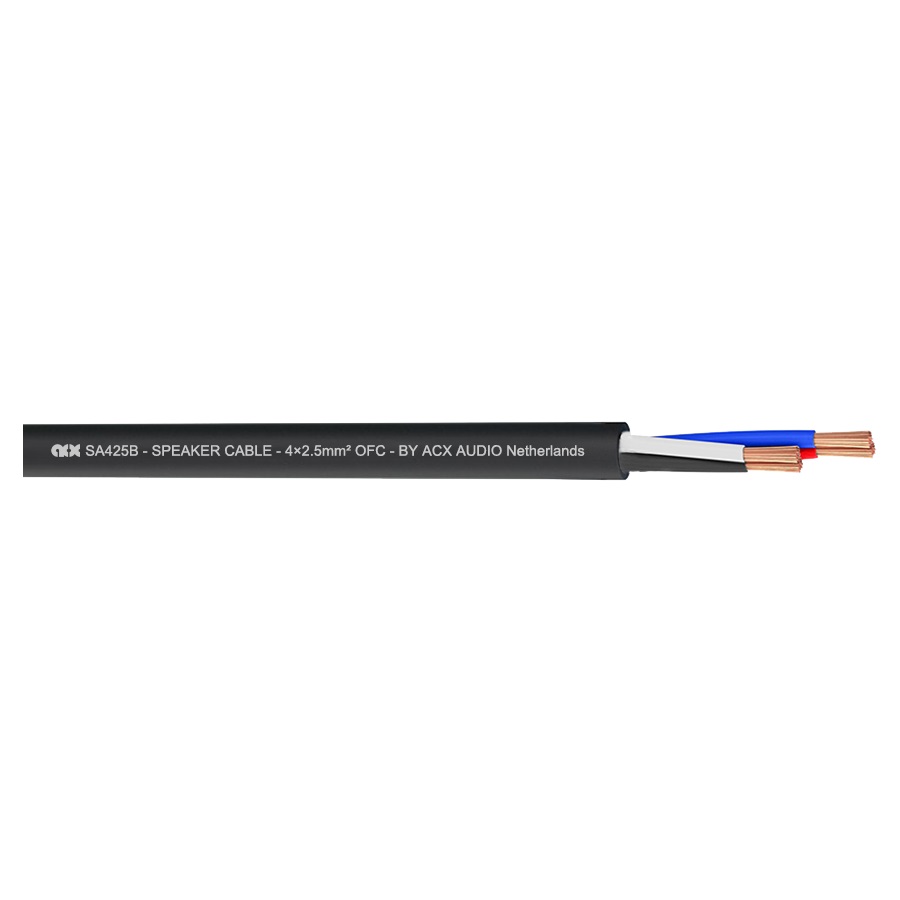

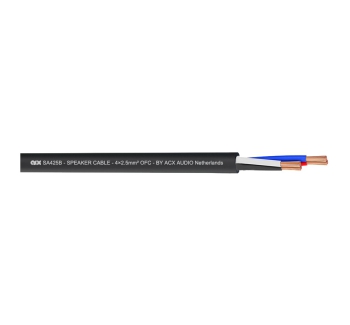

SA425B
Mobile Speaker Cable
PVC Ø11 mm - 4x2.50 mm²
Part. No.: BC0057
| General | |
| Part number | BC0057 |
| Cable model | SA425B |
| Cable type | Speaker Cable |
| Properties | Analog |
| Conductor material | OFC |
| Application area | Stage /live |
| Application type | Mobile outdoor /indoor |
| Application of voltage | Low voltage |
| Standards | CE/Rosh |
| Construction | |
| Jacket material | S-PVC |
| Colour | Black |
| Jacket shape | Round |
| Jacket diameter [mm] | 11 |
| Conductor | 4×2.50 mm² |
| AWG | 13 |
| Copper construction mm | 49×00.25 |
| Insulation material | PVC |
| Insulation diameter [mm] | 3.5 |
| Weight kg/roll | 21kg |
| Packing m/roll | 100 |
| Min.bending radius | 55 |
| Min.temperature [°C] | -20 |
| Max.temperature [C] | 70 |
| Electrical Data | |
| Capacitance pF/m | 142 |
| Conductor resistance Q/km | <8 |
| Max.operating voltage V | 300 |
