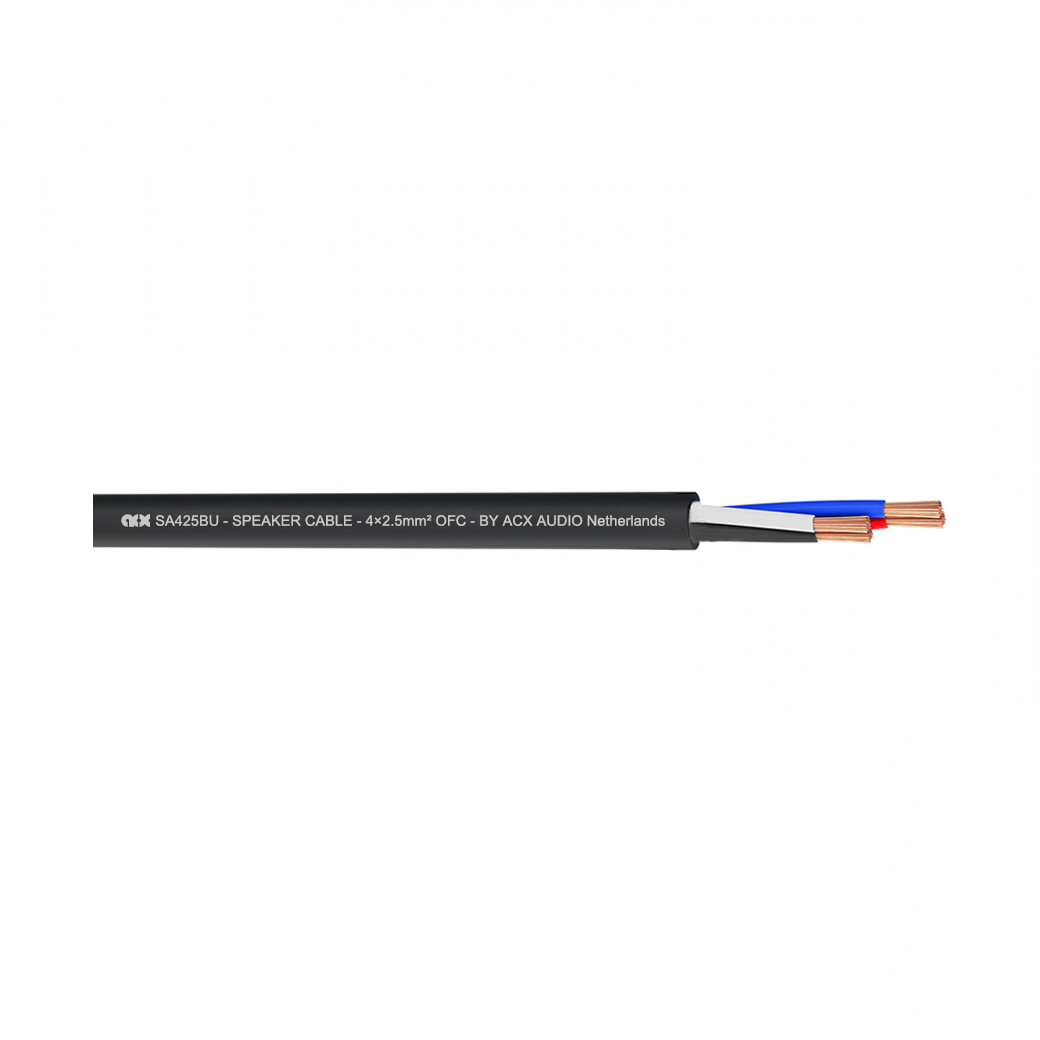

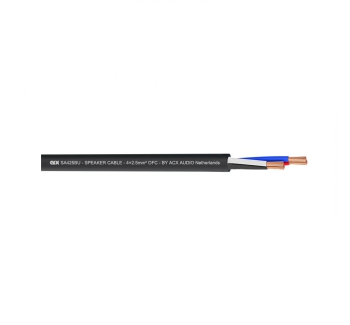

SA425BU
Mobile Speaker Cable
PUR Ø11 mm - 4x2.50 mm²
Part. No.: BC0058
| General | |
| Part number | BC0058 |
| Cable model | SA425BU |
| Cable type | Speaker Cable |
| Properties | Analog |
| Conductor material | OFC |
| Application area | Stage /live |
| Application type | Mobile outdoor /indoor |
| Application of voltage | Low voltage |
| Standards | Fca |

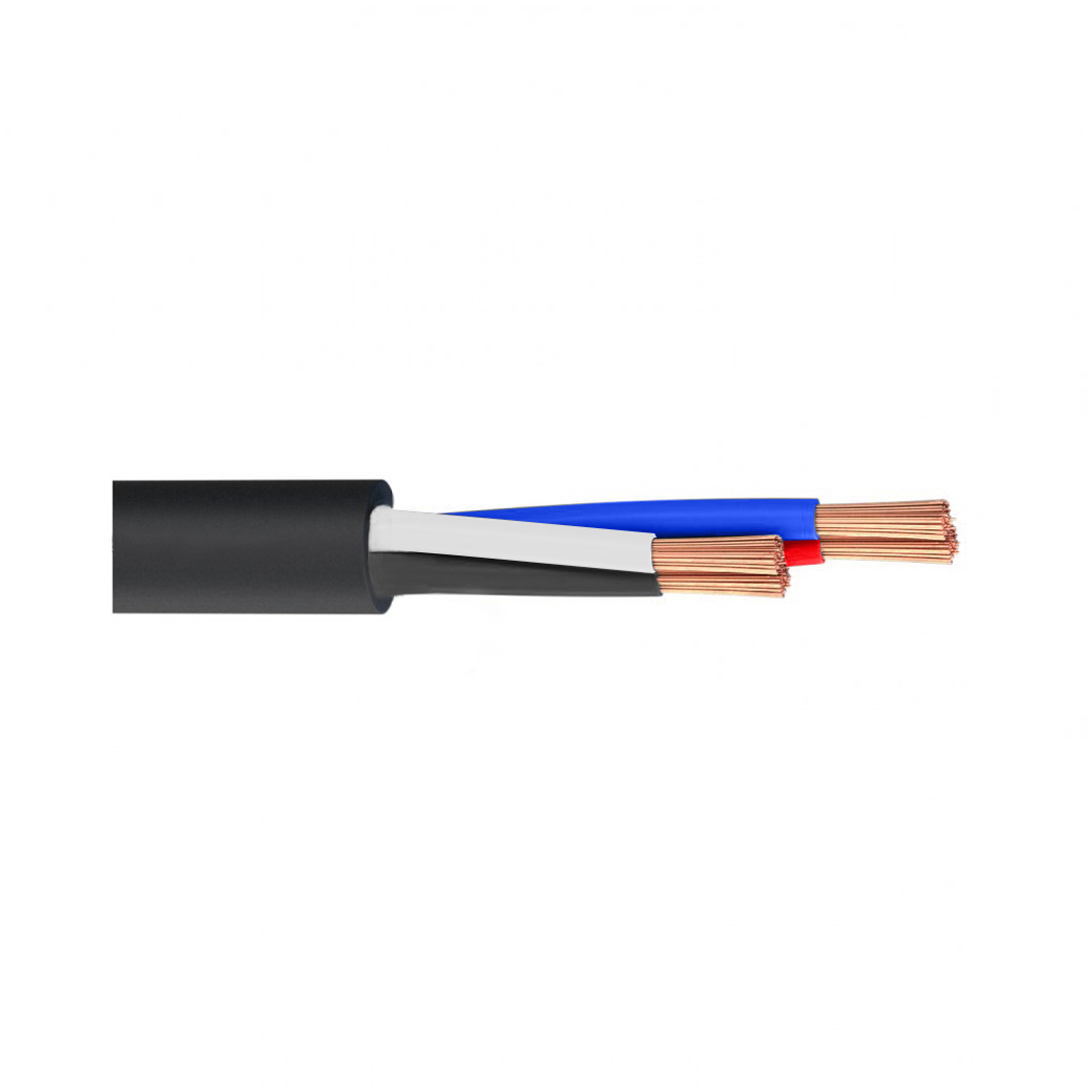

| Construction | |
| Jacket material | PUR |
| Colour | Black |
| Jacket shape | Round |
| Jacket diameter [mm] | 11 |
| Conductor | 4×2.50 mm² |
| AWG | 13 |
| Copper construction mm | 49×2.5mm² |
| Insulation material | PVC |
| Insulation diameter [mm] | 3.5 |
| Weight kg/m | 19kg |
| Packing m | 100 m |
| Min.bending radius | 55 |
| Min.temperature [°C] | -40 |
| Max.temperature [C] | 70 |
| Electrical Data | |
| Capacitance pF/m | 120 |
| Conductor resistance Q/km | <7.5 |
| Max.operating voltage V | 300 |
