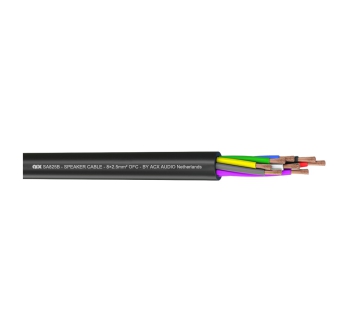

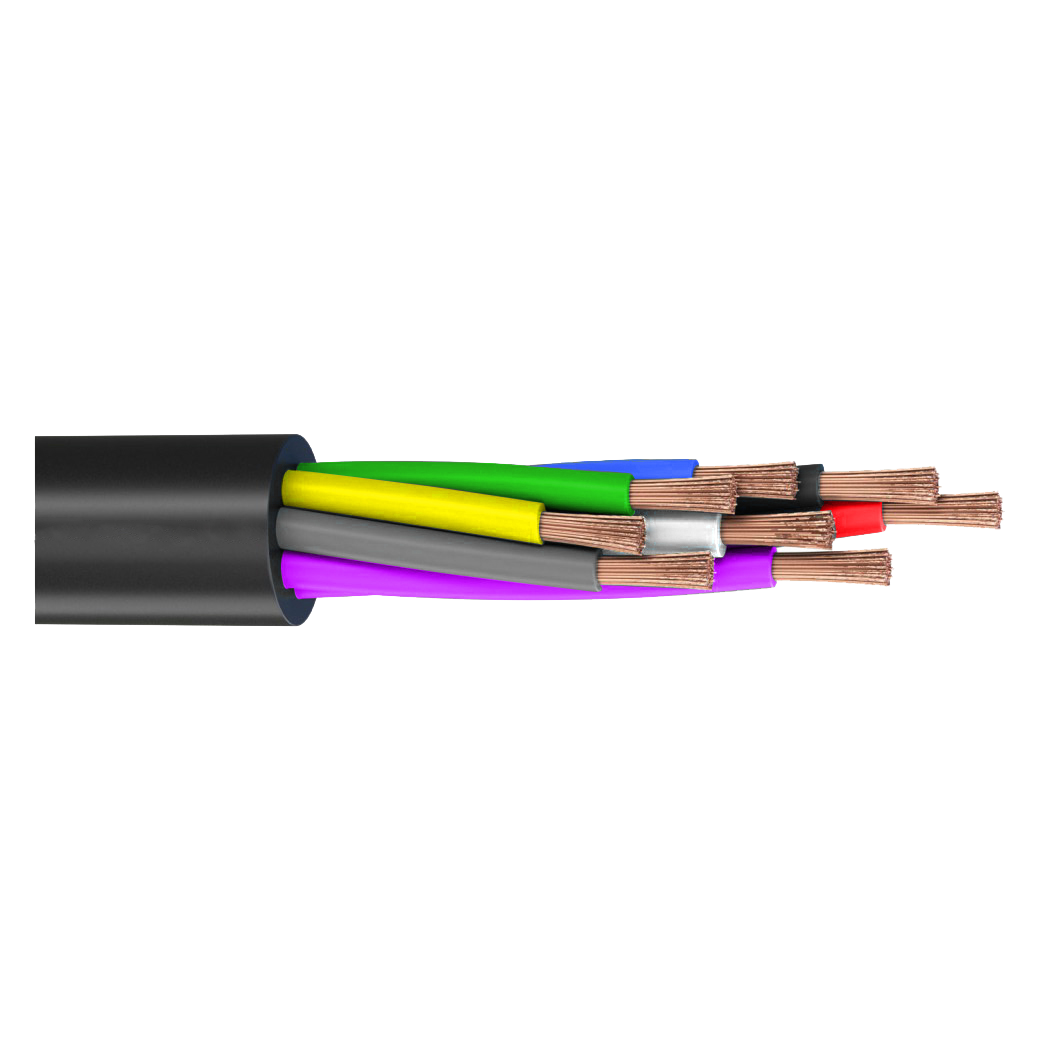

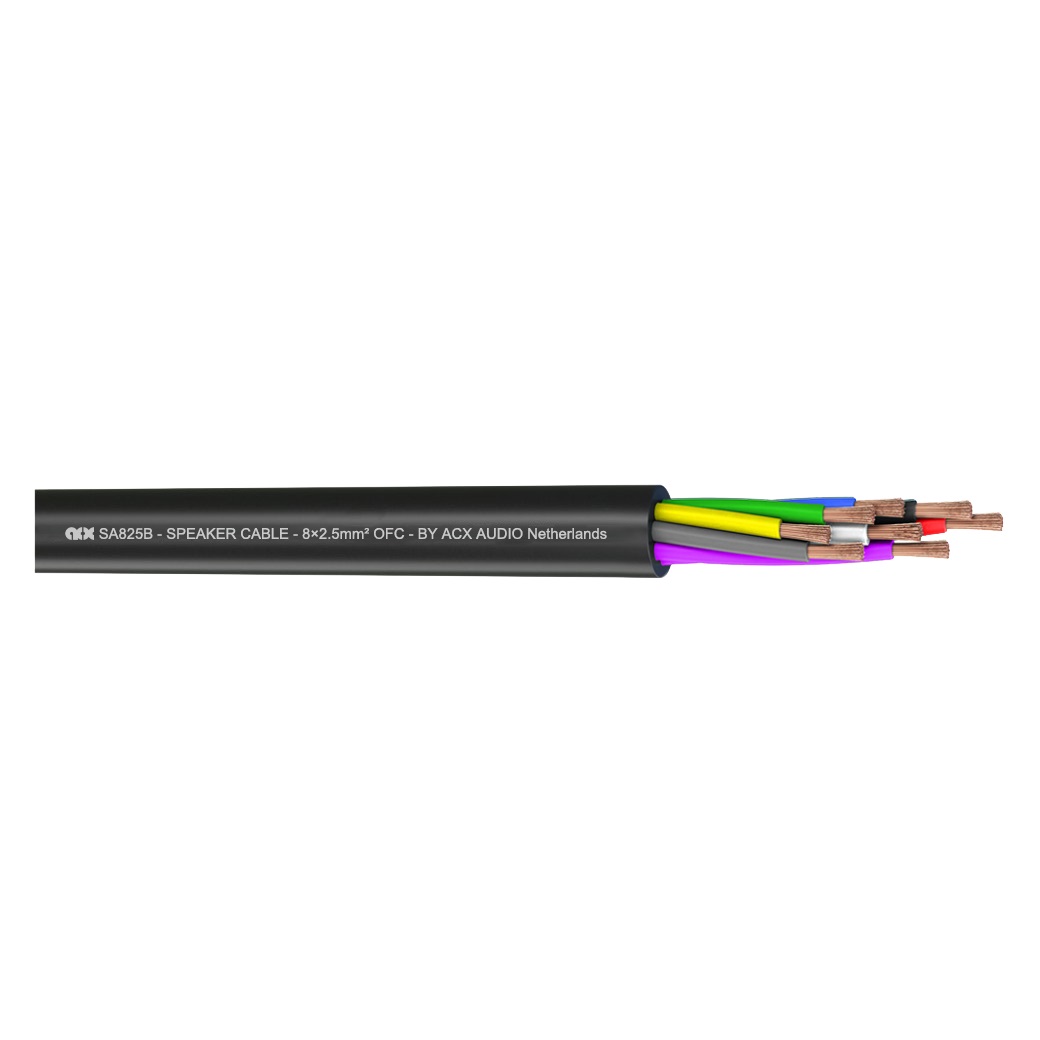

SA825B
Mobile Speaker Cable
PVC Ø15 mm - 8x2.50 mm²
Part. No.: BC0061
| General | |
| Part number | BC0061 |
| Cable model | SA825B |
| Cable type | Speaker Cable |
| Properties | Analog |
| Conductor material | OFC |
| Application area | Stage /live |
| Application type | Mobile outdoor /indoor |
| Application of voltage | Low voltage |
| Standards | CE/Rosh |
| Construction | |
| Jacket material | S-PVC |
| Colour | Black |
| Jacket shape | Round |
| Jacket diameter [mm] | 15 |
| Conductor | 8×2.50 mm² |
| AWG | 13 |
| Copper construction mm | 140 × Ø 0.15 |
| Weight kg/roll | 40.5kg |
| Packing m/roll | 100 |
| Min.bending radius | 75 |
| Min.temperature [°C] | -20 |
| Max.temperature [C] | 70 |
| Electrical Data | |
| Capacitance pF/m | 130 |
| Conductor resistance Q/km | <7.5 |
| Max.operating voltage V | 300 |
