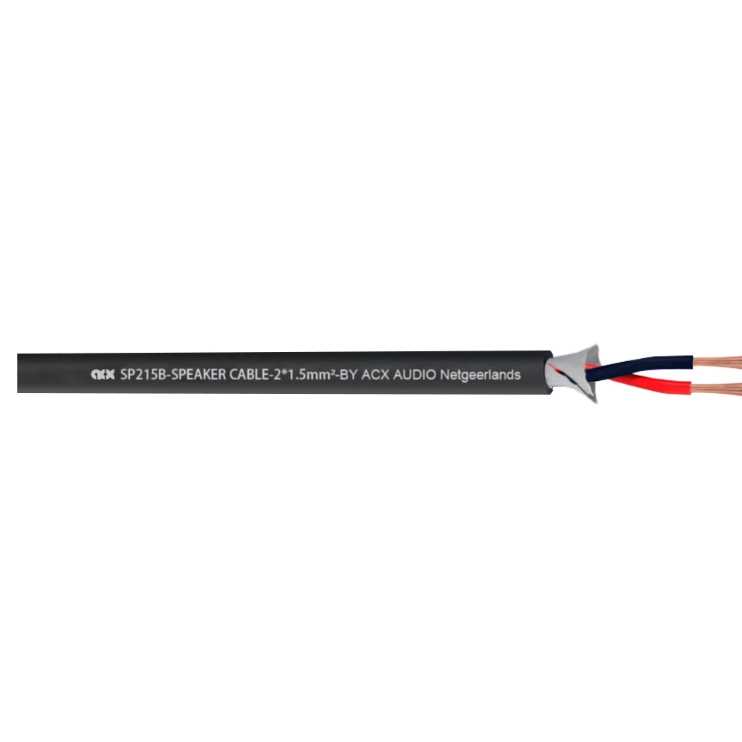

SP215B
Installation Speaker Cable
PVC Ø7.0 mm - 2x1.50 mm²
Part. No.: BC0048
| General | |
| Part number : | 23-0048 |
| Cable model : | SP215B |
| Cable type : | Speaker Cable |
| Properties : | Analog |
| Conductor material : | 99.95% Pure Copper |
| Application area : | Stage / live |
| Application type : | Installation |
| Application of voltage : | Low voltage |
| Standards : | CE/Rosh |
| Construction | |
| Jacket material : | PVC |
| Colour : | black |
| Jacket shape : | round |
| Jacket diameter [mm] : | 7.0 |
| Conductor : | 2 × 1.50 mm² |
| AWG : | 15 |
| Copper construction mm | 48 × Ø 0.20 |
| Insulation material | PVC |
| Insulation diameter [mm] | 3.0 |
| Weight Kg / roll : | 9.1KG |
| Packing m/ roll : | 100 |
| Min. bending radius | 35 |
| Min. temperature [°C] : | -20 |
| Max. temperature [°C] : | 70 |
| ElectricalData | |
| Capacitance pF/m | 183 |
| Conductor resistance Ω/km | <13 |
| Max. operating voltage V | 300 |
